Lincoln Mark VIII 1996 Instrument Cluster Fuse Box/Block Circuit Breaker Diagram

Lincoln Mark VIII 1996 Instrument Cluster Fuse Box/Block Circuit Breaker Diagram



FUSEAMPSCIRCUITS PROTECTED
130ABlower Motor Speed Controller
2-Not Used
330AInterval Wiper/Washer Module, Windshield Wiper Motor
425APark Lamp Relay, Main Light Switch
510AEATC Module, Shift Lock Actuator, Blend Door Actuator, Rear Window Defrost Control, Traction Assist Control Switch, Remote Keyless Entry Module, Anti-Theft Controller Module
615AAutolamp Switch/Pulse Width Dimming Module, Anti-Theft Controller Module, Remote/Keyless Entry Module, Power Seats, Memory Mirror Module, Courtesy Lamp Switches
710AStart Interrupt Relay, Power Antenna Module, Left Seat memory Module, Memory Mirror Module
820ACigar Lighter
910AElectronic Day/Night Mirror, Transmission Control Switch (TCS), Day/Night Sensor/Amplifier
1015AMulti-Function Switch, Air Bag System, Anti Lock Brake, Air Suspension, Transmission Range (TR) Sensor, Daytime Running Lamps, Air Suspension/EVO Steering Module
1115AMulti-Function Switch, Brake ON/OFF (BOO) SWitch, Brake Pressure Switch
1220 c.b.Power Seat, Remote/Keyless Entry, Fuel Filler Door and Trunk Lid Release Switch
1310ARear Window Defrost/Heated Mirrors
1420 c.b.Master Window Control Switch, Moonroof Control Switch, Right Front Window Switch, One Touch Window Down Module

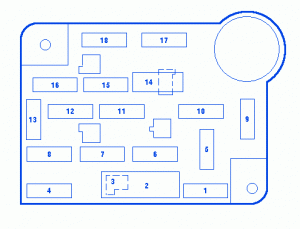

Lincoln Mark VIII 1996 Instrument Cluster Fuse Panel/Board – Fuse Symbol Map
