Lincoln Navigator 1998 Fuse Box/Block Circuit Breaker Diagram

Lincoln Navigator 1998 Fuse Box/Block Circuit Breaker Diagram



Mini FusesAmpsCircuits Protected
125AAuxiliary Power Socket
230APCM Power Relay
330AMain Light Switch, Headlamp Relay, Multifunction Switch
425ACorsole Auxiliary Power Socket
520ATrailer Tow Runnng Lamp Relay, Trailer Tow Reversing Lamp Relay
615AMain Light Switch, Park Lamp Relay
720AHorn Relay
830ALock Relays
915ADaytime Running Lamps(DRL) Module, Fog Lamp Relay
1020AFuel Pump Relay
1120ACharging System
1210ARear Wipers Up and Down
13-Not Used
14-Not Used
1510ARight Running Board Lamp, Left Running Board Lamp, Central Junction Box
16-Not Used
1710ARadio, Cental Junction Box, Power Window Switch, RPO Relay Block #2
1815AFuel Injectors, PCM
1910ATrailer/Camper Adapter
2010ATrailer/Camper Adapter
21-Not Used
22-Not Used
2315AHeated Oxygen Sensors
2415ATransmission

Maxi FusesAmpsCircuits Protected
10130ATrailer Tow Battery Charge Relay
10250A(4WABS) Module
10350ACentral Junction Box
10430ATranfer Case Shift Relays, Torque on Domand (TOD) Relay
10540ABlower Relay
106-NOt Used
10730APassenger Power Seat Control Switch
10830ATrailer Electronic Brake Control
10950AAir Suspension Compressor Relay
11030AVen Window/Roof Opening Panel Relay, Heated Seat Modules
11150AIgnition Switch
11230APower Seat Control Switch
11350AIgnition Switch
11430AAuxiliary A/C Relay
115-Not Used
11640AHeated Grid Relay
117-Not Used
118-Not Used
601 C.B30AACC Delay Relay
602 C.B-Not Used

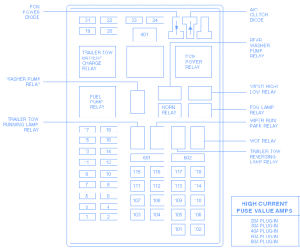

Lincoln Navigator 1998 Fuse Panel/Board – Fuse Symbol Map
