Lincoln Stretch Limo 2000 Fuse Box / Block Circuit Breaker Diagram
| SYMBOL | AMPS | COLOR | CIRCUIT PROTECTED |
|---|---|---|---|
| 1 | 15A | LB | Stop Lamps, Hazard Warning Lamps, Speed Control |
| 2 | 25A | Windshield Wiper Governer, Windshield Wiper Switch and Motor, Windshield Washer Motor, Windshield Fluid Level Switch | |
| 3 | - | - | Not Used |
| 4 | 15A | LB | Chime, Front Parking and Side Marker Lamps, Fuse Cavitiesn13 and 15, and Illumination of the following Items Cluster, Headlamp Switch, |
| Temperature Controls, Message Center Switch, Heater Back Window Switch, Front and Rear Ash Receptacles | |||
| 5 | 15A | LB | Heated Back Window Switch, Electronic Flasher, Steering Rate Sensor, Roof Console, Air Suspension, Day / Night Mirror, Back-Up Lamps, |
| A/C Control Head, Cluster Control Buttons, Variable Assist Power Steering Module, | |||
| Electronic Door lock Control Processor or Illuminated Entry module, Turn Signal Lamps, Cluster Illumination, Shift Interlock Solenoid | |||
| 6 | 15A | LB | Chime, Luggage Compartment Door Lock Solenoid Release, Overhead Console, Anti-Theft Alarm control Module, Reading Lamps, |
| Daytime Display Lamps for Radio, Clock, A / C Controls, Power Window Relay, Cellular Phone |

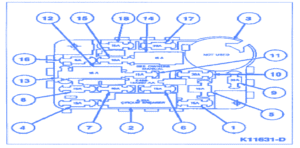

Lincoln Stretch Limo 2000 Fuse Panel / Board – Fuse Symbol Map
