Lincoln Towncar 1998 Fuse Box/Block Circuit Breaker Diagram
| FUSE | AMPS | CIRCUITS PROTECTED |
|---|---|---|
| 1 | 10A | Lighting Control Module (LCM) |
| 2 | 30A | EATC Blower Motor |
| 3 | 10A | Lighting Control Moduele (LCM) |
| 4 | 7.5A | Instrument Cluster |
| 5 | 7.5A | Lighting Control Module (LCM) |
| 6 | 15A | EATC, Heated Seats |
| 7 | 15A | lighting Control Module (LCM), Day/Night Sensor/Amplifier |
| 8 | 10A | Shift Lock, Speed Control, Air Suspension, Steering Wheel Rotation Sensor |
| 9 | 20A | lighting Control Module (LCM), Multi-Function Switch |
| 10 | 20A | Brake Pedal Position (BPP) Switch, Brake Pressure Switch |
| 11 | 10A | Electronic Crash Sensor |
| 12 | 15A | Instrument Cluster, Anti-Thieft, Ignition Switch, Ignition Coils |
| 13 | 10A | Anti-Lock Brake Module, Traction Control Switch |
| 14 | 7.5A | Transmission Control Switch, Lighting Control Module |
| 15 | 20A | Multi-Function Switch |
| 16 | 30A | Wiper Control Module (WCM), Windshield Wiper Motor |
| 17 | 10A | Digital Transmission Range (DTR) Sensor |
| 18 | 7.5A | Lighting Control Module, Front Radio Control Unit, Cellular Telephone Transceiver, Electronic Day/Night Mirror, Compas Module |
| 19 | 10A | EATC, Clock, Instrument Cluster, PCM |
| 20 | 7.5A | Lighting Control Module, ABS, Shift Lock |
| 21 | 20A | Multi-Function Switch |
| 22 | 20A | Muti-Function Switch, High Mount Stop Lamps |
| 23 | 20A | Data Link Conector, I/P Cigar Lighter |
| 24 | 5A | Front Radio Control Unit |
| 25 | 15A | Lighting Control Module (LCM) |
| 26 | 5A | Digital Transmission Range (DTR) Sensor |
| 27 | 20A | Fuel Filler Door Release Switch |
| 28 | 10A | Heated Mirrors |
| 29 | 20A | LF Door Module |
| 30 | 7.5A | LF Seat Module, Trunk Lid Release Switch, Door Lock Switches, LF seat Control Switch, LF Door Module, Power Mirror Switch |
| 31 | 7.5A | Main Light Switch, Lighting Contol Module (LCM) |
| 33 | 15A | Front Radio Control Unit, Digital Compac Disc Changer, Cellular Telephone transceiver |
| RELAY POSITION | RELAY |
|---|---|
| 1 | ACCY Delay Relay (Signature/Cartier), Power Window Relay (Executive) |

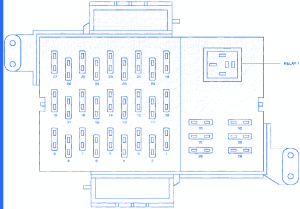

Lincoln Towncar 1998 Fuse Panel/Board – Fuse Symbol Map
