Mazda 626 1999 Fuse Box/Block Circuit Breaker Diagram

Mazda 626 1999 Fuse Box/Block Circuit Breaker Diagram



Fuse SymbolRatingColourFuse Map
120AYellowStop Lights, Horn
215ABlueInterior Lights, Trunk Light, Sound Warning System
315ABlueSpare Fuse
430AGreenPower Door Lock
515ABlueAudio Sysytem, Cigarette Lighter, Outside Mirror
615ABlueSun Roof
715ABlueTurn Sgnal
830AGreenPower Seats
915ABlueGauges, Back-Up Lights, Cruise Control
1015ABlueHazard Warning Lights
1115ABlueEngine Control System
1230AGreenPower Windows
1320AYellowHeadlight Cleaner
1420AYellowWindshield Wiper/Washer
1520AYellowRear Window Wiper

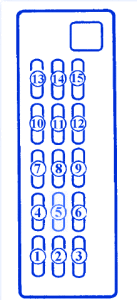

Mazda 626 1999 Fuse Panel/Board – Fuse Symbol Map
