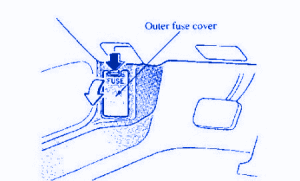

Mazda Millenia 6 cyl 2001 Interior Fuse Box/Block Circuit Breaker Diagram
| NO. | FUSE | CIRCUIT NAME |
|---|---|---|
| 1 | 15A | HAZARD |
| 2 | 15A | ROOM |
| 3 | 15A | SUN ROOF |
| 4 | 15A | METER |
| 5 | 20A | STOP |
| 6 | - | - |
| 7 | 15A | IIA |
| 8 | 15A | R.DEF |
| 9 | 10A | A/C |
| 10 | 20A | WIPER |
| 11 | 10A | M.DEF |
| 12 | 15A | START |
| 13 | 10A | TURN |
| 14 | 15A | BLOWER |
| 15 | 30A | P/WINDOW |
| 16 | - | - |
| 17 | - | - |
| 18 | 10A | RADIO |
| 19 | 15A | ENGINE |
| 20 | 10A | ILLUMI |
| 21 | 15A | OPENER |
| 22 | - | - |
| 23 | 15A | CIGAR |
| 24 | - | - |
| 25 | - | - |
| 26 | 30A | SPARE |
| 27 | - | - |
| 28 | - | - |
| M1 | 30A | DOOR LOCK |
Mazda Millenia 6 cyl 2001 Interior Fuse Panel/Board – Fuse Symbol Map
