Mazda Millenia S 1998 Under The Dash Fuse Box/Block Circuit Breaker Diagram
| NO. | FUSE | CIRCUIT NAME | |||
|---|---|---|---|---|---|
| 1 | 15A | HAZARD | |||
| 2 | 15A | ROOM | |||
| 3 | 15A | SUN ROOF | |||
| 4 | 15A | METER | |||
| 5 | 20A | STOP | |||
| 6 | - | - | |||
| 7 | 15A | IIA | |||
| 8 | 15A | R.DEF | |||
| 9 | 10A | A/C | |||
| 10 | 20A | WIPER | |||
| 11 | 10A | M.DEF | |||
| 12 | 15A | START | |||
| 13 | 10A | TURN | |||
| 14 | 15A | BLOWER | |||
| 15 | 30A | P/WINDOW | |||
| 16 | - | - | |||
| 17 | - | - | |||
| 18 | 10A | RADIO | |||
| 19 | 15A | ENGINE | |||
| 20 | 10A | ILLUMI | |||
| 21 | 15A | OPENER | |||
| 22 | - | - | |||
| 23 | 15A | CIGAR | |||
| 24 | - | - | |||
| 25 | - | - | |||
| 26 | 30A | SPARE | |||
| 27 | - | - | |||
| 28 | - | - | |||
| M1 | 30A | DOOR LOCK | |||

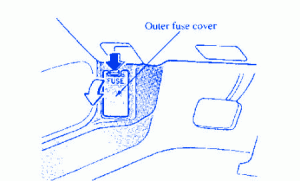

Mazda Millenia S 1998 Under The Dash Fuse Panel/Board – Fuse Symbol Map
