Mazda RX-7 Sport Sedan 1996 Fuse Box/Block Circuit Breaker Diagram
| DESCRIPTION | RATING | COLOR | PROTECTED COMPONENT | ||
|---|---|---|---|---|---|
| A | STOP | 20A | YELLOW | Brake Lights, Cruise Control, Shift-Lock, ABS COntrol Unit | |
| B | - | - | - | - | |
| C | SUN ROOF | 15A | BLUE | Sunroof | |
| D | F PUMP | 20A | YELLOW | Fuel Pump | |
| E | AIR BAG | 10A | RED | Air Bag Unit | |
| F | D LOCK | 10A | RED | Door Lock | |
| G | TAIL | 15A | BLUE | Tail, License, Side Marker, Parking, and Glove Box Lights and Panel and Switch Illumination | |
| H | P WINDOW | 30A | PINK | Power Windows | |
| I | METER | 15A | BLUE | Meters, Warning and Indicator Lights, Cruise Control, Shift-Lock, Back-Up Lights, Flasher Unit, Rear Window Defroster, Rear Washer Motor, Power Antenna | |
| J | WIPER | 20A | YELLOW | Windshield Wipers and Washer | |
| K | R WIPER | 10A | RED | Rear Wiper, Heater, ABS | |
| L | HAZARD | 15A | BLUE | Hazard Warning Lights, Horn | |
| M | ROOM | 10A | RED | Radio, Interior Light, Luggage Compartment Light | |

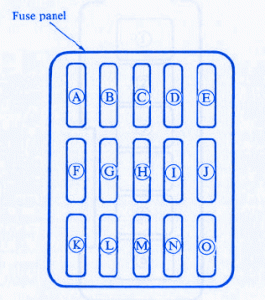

Mazda RX-7 Sport Sedan 1996 Fuse Panel/Board – Fuse Symbol Map
