Mazda Tribute 2000 ACC Fuse Box/Block Circuit Breaker Diagram

Mazda Tribute 2000 ACC Fuse Box/Block Circuit Breaker Diagram



Fuse/RelayAmpsDescription
15ACanister Vent Control Selenoid
25ABlower Relay (Coil), Rear Defrost Relay (Coil), Pressure Switch to PCM
310ARear Wiper Motor, Rear Washer Motor, Rear Wiper Relay (Coil)
410AFour Wheel Drive Control Module, Cluster (Restraints Control Warning)
55AABS Unit (EVAC&FILL), ASC Unit, Restraints Control Module, ASC Main SW to ASC Unit
610AFlasher Unit, Left Reversing Lamp, Right Reversing Lamp
710APassive Anti-Theft Transceiver (PATS), Restraints Control Module
810ACluster, Shift Lock Relay (Coil), O/D Signal to PCM
93APCM Relay(Coil), Fan Relay 1,2,3 (Coil),A/C Relay
1020AFront Wiper Motor, Front Washer Motor, INT Relay
1110AIGN Relay (Coil),ACC Relay (Coil), Starter Relay (Coil), Key Interlock Solenoid, GEM
125ARadio, Clock
13-Not Used
1420ACigar lighter
1515ALeft Front Position lamp, Right Front Position Lamp, Left License Lamp, Right License Lamp, Left Tail Lamp, Right Tail Lamp, Park Lamp relay (Coil), Trailer Fuse, Illumination Fuse

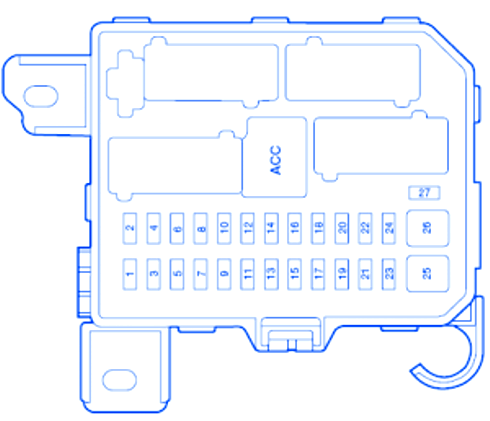

Mazda Tribute 2000 ACC Fuse Panel / Board – Fuse Symbol Map

Fuse/RelayAmpsDescription
1610ACluster, Power Mirror, GEM
1715ASun Roof Motor
185AIllumination for: Cluster, Heater Unit, Radio, Hazard Switch, Rear Defrost Switch, 4WD Switch, Front Fog Switch
1910ASubwoofer Amp
2015ALeft/Right Turn Indicators, Left/Right Front Side Turn Lamps, Left/Right Front Turn Lamps, Left/Right Rear Turn Lamps, Left/Right Trailer Turn, Flasher Unit
2110ALeft/Right Trailer Position Lamps
2215ANot Used
2315ALeft/Right Horn
2415ALeft/Right Stop Lamps, High Mounted Stop Lamp, Left/Right Trailer Stop Lamp, ABS Unit, ASC Unit (Brake Pedal Position Switch), PCM, Shift Solenoid
2530APower Window Motor - Right Front, Left Front, Right Rear, Left Rear
2630APower Door Lock Motor - Right Front, Left Front, Right Rear, Left Rear, GEM (Door Lock Relay Coil), Power seat
2710AAudio, Cluster, Interior Lamp, Map Lamp Cargo Lamp
ACC-Accessory Relay
