Mazda Xedos 1999 Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Description | Rating | Colour | Protected Component |
|---|---|---|---|---|
| A | ENGINE | 15A | Blue | Cooling Fan |
| B | METER | 10A | Red | Gauges, Warning Lights |
| C | - | - | - | - |
| D | HEATER | 30A | - | Heater |
| E | - | - | - | - |
| F | POWER WIND | 30A | Green | Power Windows |
| G | WIPER | 20A | Yellow | Wipers,Washers |
| H | - | - | - | - |
| I | TAIL | 10A | Red | Tail Lights |
| J | - | - | - | - |
| K | STOP | 10A | Red | Horn, Stop Lights |
| L | HAZARD 10A | Red | Hazard, Warning Lights | |
| M | - | - | - | - |
| N | - | - | - | - |
| O | CIGAR | 15A | Blue | Cigarette Lighter |
| P | - | - | - | - |
| Q | ROOM | 10A | Red | Interior Lights |

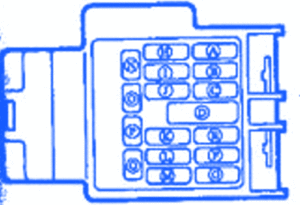

Mazda Xedos 1999 Fuse Panel/Board – Fuse Symbol Map
