Mercedes-Benz A-Class 2002 Fuse Box/Block Circuit Breaker Diagram

Mercedes-Benz A-Class 2002 Fuse Box/Block Circuit Breaker Diagram



SymbolDescription
1Low Beam H/Light L
2Low Beam H/Light R
3Main & Main Beam Indicator Dash
4Front Parking R & Rear Light R
5Number Plate & Instrument Cluster 58 Dash
6F & R Fog Lamps

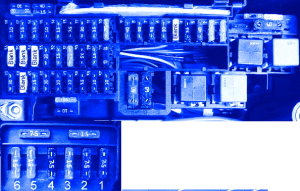

Mercedes-Benz A-Class 2002 Fuse Panel/Board – Fuse Symbol Map
