Mercedes Benz E-320 2008 Mini Fuse Box/Block Circuit Breaker Diagram
| FUSE NO. | EL. ACCESSORY |
|---|---|
| 1 | Not Assigned |
| 2 | Brake Lamp/(Tempomat-Cruise Control) |
| 3 | Right High Beam, High Beam Indicator Lamp |
| 4 | Reversing Lamp/Turn Signal Lamp (Control, Rear Wiper/anti-dazzle Rear View Mirror Control, Parking aid) |
| 5 | Left High Beam |
| 6 | Righ Low Beam |
| 7 | Righ Parking/Tail Lamp Side Marker |
| 8 | Left Low Beam |
| 9 | Fog Lamp |
| 10 | Left Parking/Tail Lamp Side Marker |
| 11 | Licence Plate/Instrument Cluster Lighting/Symbol Lighting |
| 12 | Rear Fog Lamp |

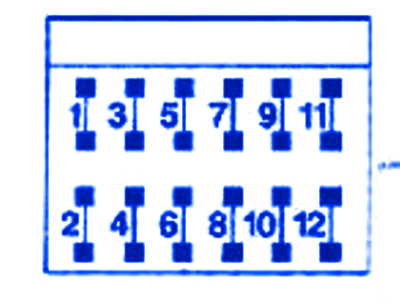

Mercedes Benz E-320 2008 Mini Fuse Panel/Board – Fuse Symbol Map
