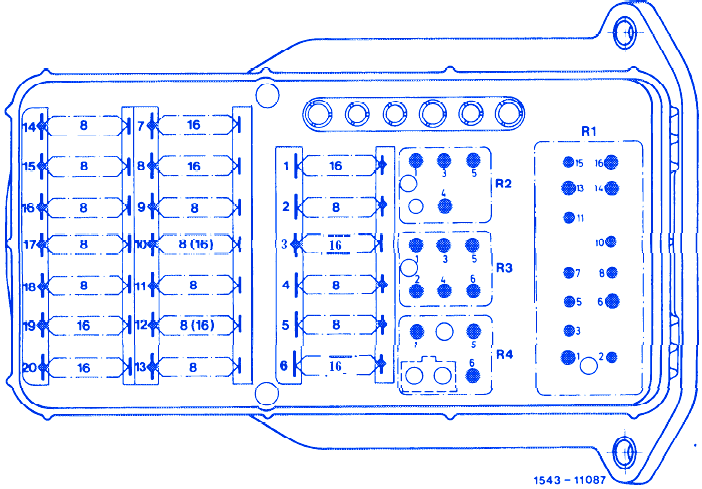

Mercedes Benz E190 1988 Fuse Box/Block Circuit Breaker Diagram
| SYMBOL | DESCRIPTION |
|---|---|
| R1 | Combination Relay (Turnsignal, Heatable Rear Window, Wiper) |
| R2 | Relay Window Opener |
| R3 | Relay Air Conditioning |
| R4 | Relay Overvoltage Protection |
Mercedes Benz E190 1988 Fuse Panel/Board – Fuse Symbol Map
