Mercedes Benz G200 2000 Fuse Box/Block Circuit Breaker Diagram

Mercedes Benz G200 2000 Fuse Box  / Block Circuit Breaker Diagram

Fuse SymbolFuse Map
1(Telephone), Garage Door Opening Signal, E-Call
2Control Unit Air-Bag, Control Unit Automatic Child Seat Recognition System
3Indicator Safety Restraint System, Indicator Automatic Child Seat Recognition System
4Wiper Motor
5Radio
6Exterior Mirror Adjustment Left and Right
7Soft Top Control Indicator, (Electronic Transmission Control)(Park / Reversing Lock)
8Radio
9Roof Light, Horn, Anti-Theft Alarm, Trunk Light
10(Temporat(Cruise Control)), (Headlamp Range Xenon)
11Ignition Coil
12Washer Liquid Heater, Washer Nozzle Heater
13Diagnostic Socket (38 Pin-Type), Telephone, E-Call
14Soundbooster
15Tempmatic, Auxiliiary Water Pump
16ABS / ESP
17ABS / ESP
18Spare
19Power Window Front
20Power Window Rear
21Seat Adjustment Right Side
22Seat Adjustment Left Side
23Spare
24Hydraulic Unit
25Penumatic Control Unit, Rear Window Defroster
26Central Locking
30Seat Heater
31Cigar Lighter, Glove Compartment Light
32Wiper, Washer Pump, Headlamp Flasher
33Tempmatic
34Seat Heater
35Radio Frequency Remote Control, Heated Warning Flasher Instrument Cluster, Tempmatic
36Tempmatic
37Circulating Air, Instrument Cluster Radio Frequancy Remote Control, Tempmatic

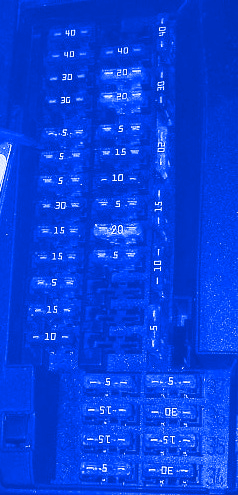

Mercedes Benz G200 2000 Fuse Panel / Board – Fuse Symbol Map
