Mercedes Benz W211 2005 Passenger Compartment Fuse Box/Block Circuit Breaker Diagram
| Fuse | Rating | Circuit Protected | |||
|---|---|---|---|---|---|
| F21 | 30A | LH Front Door Control Unit | |||
| F22 | 30A | RH Front Door Control Unit | |||
| F23 | - | Spare | |||
| F24 | 7.5A | CD Player | |||
| F25 | 30A | Upper Control Panel Control Unit | |||
| F26 | 25A | Audio Amplifier | |||
| F27 | - | Spare | |||
| F28 | - | Spare | |||
| F29 | 30A | RH Front Seat Adjusment Control Unit | |||
| F30 | 40A | Heating System Recirculation Unit | |||
| F31 | 20A | ELS Control Unit, Electric Steering Lock Control Unit | |||
| F32 | - | Spare | |||
| F33 | - | Spare | |||
| F34 | 30A | LH Front Seat Adjusment Control Unit | |||
| F35 | 30A | Stationary Heater Unit (STH) | |||
| F36 | 10A | Telephone | |||
| F37 | - | Spare | |||
| F38 | - | Spare | |||
| F39 | - | Spare | |||
| F40 | 7.5A | Phone | |||
| F41 | 7.5A | Automatic Air Conditioning (AAC) | |||
| F42 | 7.5A | Instrument Cluster | |||

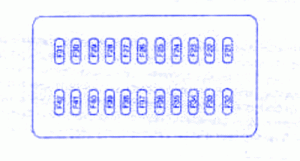

Mercedes Benz W211 2005 Passenger Compartment Fuse Panel/Board – Fuse Symbol Map
