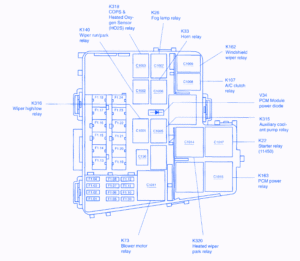

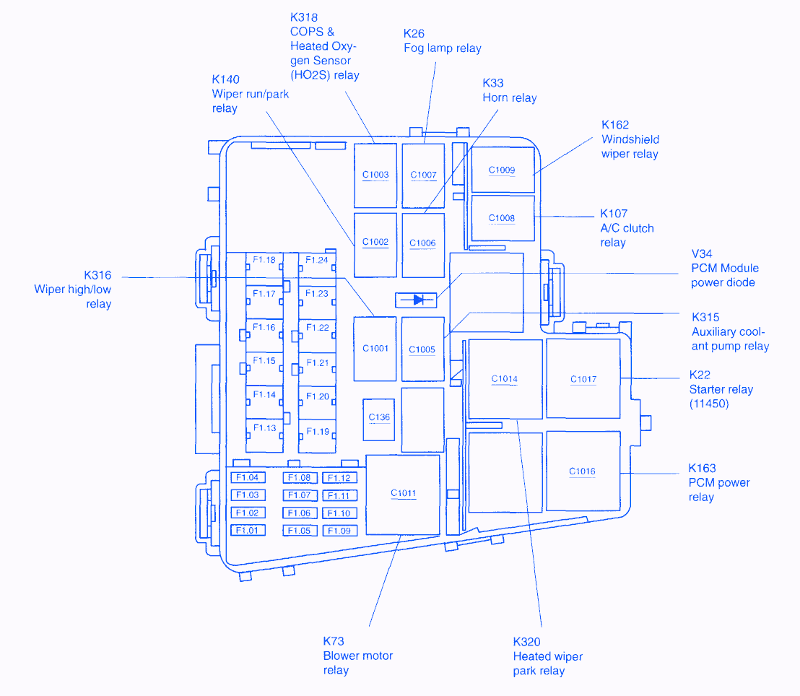

Mercury Marauder 2004 Main Fuse Box/Block Circuit Breaker Diagram

Mercury Marauder 2004 Main Fuse Box/Block Circuit Breaker Diagram



FuseAmpsCircuits Protected
F1.0110AAuxiliary Coolant Pump Relay, A/C Clutch Relay, Coolant Control Valve Solenoid (19495)
F1.02-Not Used
F1.0315AFog Lamp Relay
F1.0415AHorn Relay
F1.0520AMass Air Flow (MAF) Sensor (12B579), Hydraulic Fan Solenoid (8K621), Fuel Injectors, Inlet Air Control Valve Solenoid
F1.0615ASpeed Control Servo (9C735), Evaporative Emission (EVAP) Canister Vent Valve (9F945), Electr, Vacuum Regulator (EVR) Solenoid Valve, Automatic Transmission (7C078), EVAP Canister Purge Valve, Inlet Manifold Runner Control (IMRC) Module
F1.07-Not Used
F1.08-Not Used
F1.09-Not Used
F1.105AInlet Air Control Valve Solenoid
F1.1115AA/C Clutch Relay, Heated Oxygen Sensor (HO2S) #21 (9G444), Heated Oxygen Sensor (HO2S)#11 (9G444), Heated Oxygen Sensor (HO2S)#22 (9F472), Heated Oxygen Sensor (HO2S)#12 (9F472), Air Pump Relay, Vacuum Diverter Valve Solenoid
F1.1210ACoil On Plug (COP)1(12029), Coil On Plug (COP)2(12029), Coil On Plug (COP)3(12029), Coil On Plug (COP)4(12029), Coil On Plug (COP)5(12029), Coil On Plug (COP)6(12029), Coil On Plug (COP)7(12029), Coil On Plug (COP)8(12029), Ignition Transformer Capacitor 1(18801), Ignition Transformer Capacitor 2(18801)
F1.1330AHeated Wiper Park Relay
F1.1430AABS Control Module (2C219), ABS Test Connector
F1.15-Not Used
F1.1630ABlower Motor Relay
F1.1720AAir Pump Relay
F1.1840APCM Power Relay, COPS & Heated Oxygen Sensor (HO2S) Relay, F1.10
F1.19-Not Used
F1.2030AWindshield Wiper Relay
F1.2130AStarter Relay (11450)
F1.2230AABS Control Module (2C219)

Mercury Marauder 2004 Main Fuse Panel/Board – Fuse Symbol Map
