Mercury Mystique 1995 Interior Fuse Box/Block Circuit Breaker Diagram

Mercury Mystique 1995 Interior Fuse Box/Block Circuit Breaker Diagram



NO.FUSEAMPSCIRCUITS PROTECTED
19MIRROR HEATER7.5APower/Heated Mirror Defrost Grids
20WIPER (C.B)10AWindshield Wiper/Washer System
21POWER WINDOWS40APower Windows, Power Moonroof
22ABS MODULE7.5AABS Module, Speed Control Out Out Relay
23BACKUP LAMP15APNP Switch, TH Sensor, Heater A/C Mode Switch, Speed Control Module, Gearshift Lever Unit, Air Temperature Actuator
24STOP LAMP15AInstrument Cluster, Boo Switch, Brake Pedal Switch, Clutch Pedal Switch
25DOOR LOCK20APower Door Locks, Remote Entry, anic Alarm
26MAIN LIGHT7.5AMain Light Switch, Headlamp Switch, Fog Lamp Switch, Combination Switch
27CIGAR LIGHTER15ACigar Lighter
28SEATS30AAudio System Amplifier, Power Seats
29REAR WINDOW HEATER30ARear Window Defrost Grid, Rear Window Defrost Switch
30ELECTRONICS7.5AInstrument Cluster, Air Bag Diagnostic Module, Power Antenna, Instrument Inteface Module
31ILLUMINATION7.5AInstrument Illuminatio, License Lamp, Instrument Interface Module
32RADIO7.5AClock, Radio, Radio/CD
33SIDE LIGHT (LEFT)7.5ALeft Front Park/Turn Lamps, Left Rear Combination Lamps
34COURTESY LAMPS7.5ADome/Map Lamps, Vanity Mirrors, Luggage Compartment Lamp, Engine Compartment and Glove Box Lamps
35SIDE LIGHT (RIGHT)7.5ARight Front Park/Turn Lamps, Right Rear Combination Lamps
36AIR BAG10AAir Bag Diagnostic Monitor
37BLOWER MOTOR30ABlower Switch, Blower Motor Relay, Blower Motor Resistors
38NOT USED--

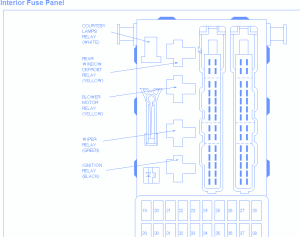

Mercury Mystique 1995 Interior Fuse Panel/Board – Fuse Symbol Map
