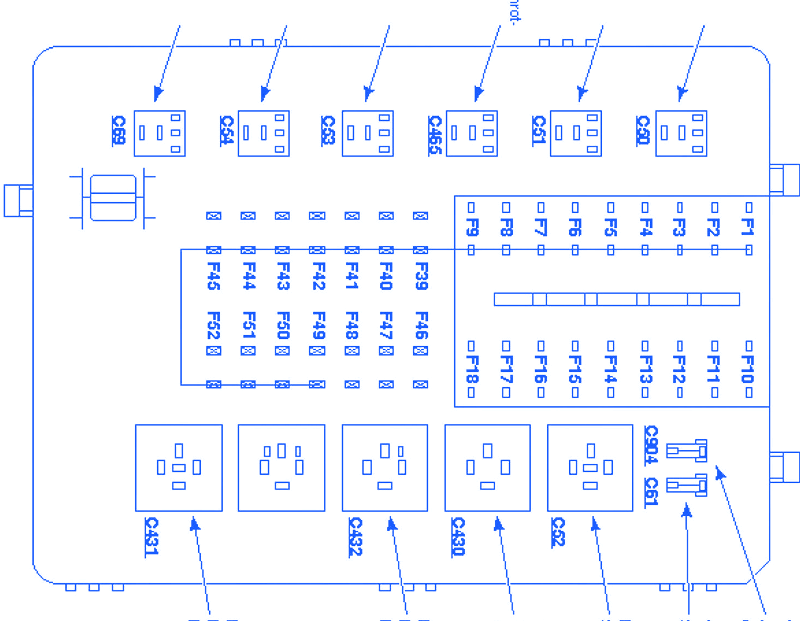

Mercury Pro XS 2009 Starter Relay Fuse Box/Block Circuit Breaker Diagram

Mercury Pro XS 2009 Starter Relay Fuse Box/Block Circuit Breaker Diagram



SYMBOLDESCRIPTION
K4Fuel Pump Relay
K163PCM Power Relay
K32A/C Wide Open Throttlr (WOT) Relay
K36Low Beam Relay
K37High Beam Relay
K33Horn Relay
V7A/C Compressor Clutch Diode
V8Starter Relay Diode
K22Starter Relay
K46High Speed Engine Cooling Fan Relay
K45Engine Cooling Fan Relay
K5Daytime Running Lamps (DRL) Relay

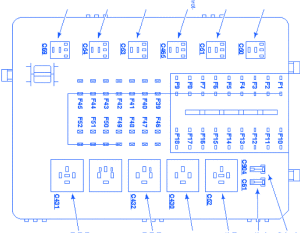

Mercury Pro XS 2009 Starter Relay Fuse Panel/Board – Fuse Symbol Map
