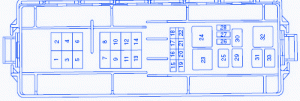

Mercury Sable GS 2008 Main Fuse Box/Block Circuit Breaker Diagram

Mercury Sable GS 2008 Main Fuse Box/Block Circuit Breaker Diagram



Fuse/Relay LocationFuse Amp RatingPower Distribution Box Description
160AFuse Junction Panel
230APowertrain Control Module (PCM) Relay
360AFuse Junction Panel
4-Not Used
5-Not Used
6-Not Used
740AStarter Relay
8-Not Used
940ACooling Fan Relays
10-Not Used
1150ARear Defrost (Sedan Only)
12-Not Used
1340AAnti-Lock Brake System (ABS) Module Pump Feed
14-Not Used
1520AABS Module Valve Solenoid
1620AFuel Pump Relay
1720ACell Port
1820APower Point
1915ARight Headlamp

Mercury Sable GS 2008 Main Fuse Panel/Board – Fuse Symbol Map
