MG F-TF 2007 Main Engine Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Amps | Function |
|---|---|---|
| FUSIBLE LINKS | ||
| FL1 | 40A | Lighting Switch, Fuse 2 & Fuse 12 Passenger Fusebox, Front Fog Lamp Relay |
| FL2 | 60A | ABS Modulator |
| FL3 | 30A | Window Lift Relay, Fuse 6 Passenger Fusebox, Fuse 23 Satellite Fusebox |
| FL4 | 40A | Ignition Switch |
| FL5 | 40A | Ignition Switch |
| FL6 | 60A | Fuse Links3,4 & 5 Fuse 5,6, & 7 Under Bonnet Fusebox |
| FUSES | ||
| F1 | 30A | Engine Management Relay Module |
| F2 | 30A | Engine Management Relay Module, Invertia Switch |
| F3 | 15A | Alarm ECU |
| F4 | 10A | Hazard Warning Lamps, Instrument Pack |
| F5 | 20A | A/C Relay Pack |
| F6 | 20A | Cooling Fan Relay (Non A/C Only), A/C Relay Pack (A/C Only) |

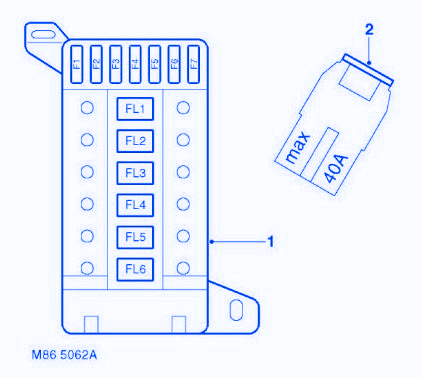

MG F-TF 2007 Main Engine Fuse Panel/Board – Fuse Symbol Map
