MG ZS 2007 Mini Fuse Box/Block Circuit Breaker Diagram

MG ZS 2007 Mini Fuse Box/Block Circuit Breaker Diagram



Fuse SymbolAmpsFuse Map
F1150AAlternator
F280AElectric Windows Relay, Fascia Fuse Box/Relay Plate
F350AIgnitin Switch, Fascia Fused box/Relay Plate
F480AEngine Coolant Blower motor Relay (except V6)
80AEngine Coolant Blower motor Control Module (V6)
F5--
F6100AGlow Plug Relay
F740AHeated Rear Window Relay
F850AABS Control Module
F950ALight Switch, Fascia Fuse Box/Relay Plate
F1040AHeater Blower Relay
F1150AAC Condenser Blower Motor
F1250AStarter Motor Relay
F13 15AAlternator, Vehicle Speed sensor (VSS), Clutch Pedal Position (CPP) Switch (Diesel)
15AVehicle Speed Sensor (VSS), Transmission Vehicle Speed Sensor (AT), Heated Oxygen Sensor (HO2S)(Petrol except V6
15AIntake Manifold Air Control Solenoids, Crankshaft Position (CKP) Sensor, Evaporative Emission (EVAP)Canister Purge Valve, Heated Oxygen Sensor (HO2S)(V6)
F1420ATransmission Control module (TCM), Park/Neutral Position (PNP) Switch
F1515AGlow Plug Relay, Mass Air Flow(MAF) Sensor, Exhaust gas Recirculation(EGR) Solenoid, Injection Pump Assembly (Diesel)
15AHeated Oxygen Sensor (HO2S), Evaporative Emission (EVAP) Canister Purge Valve, Chamshaft Position (CMP) Sensor (Petrol Except V6)
15AHeated Oxygen Ssensor (HO2S), Chamshaft Position (CMP) Sensor V6
F1610AAC Compressor Clutch Relay, Engine Coolant Blower motor Relay (Except V6)
10AAC Compressor Clutch Relay, Engine Coolant Blower Motor Control Module, AC Condenser Blower Motor Control Module (V6)
F1710AMultifunction Control Module, Brake Pedal Position (BPP)Switch, Horn Relay
F1815AFog Lamp Relay
F1915AHazard Warning Lamp Switch, Instrument Panel
F2015AAudio System, Clock
F2110AAC Compressor CVlutch Relay
F2220AInertia Fuel Shut-Off (IFS) Switch, Fuel Pump Relay
1-
2Heated Rear Window Relay
3Fuel Pump Relay
4Headlamp High Beam Relay
5Heater Blower Relay
6Fog Lamp Relay
7AC Compressor Clutch Relay

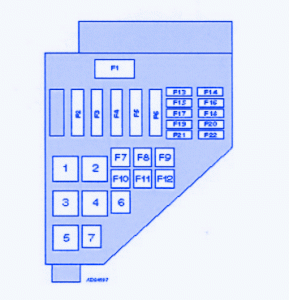

MG ZS 2007 Mini Fuse Panel/Board – Fuse Symbol Map
