MINI Cooper R50 S 2002 Hatchback Fuse Box/Block Circuit Breaker Diagram
| Fuse/Relay Symbol | Fuse/Relay Map |
|---|---|

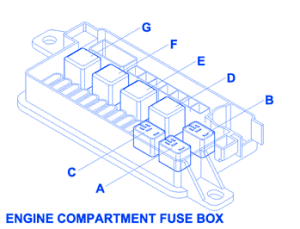

| Engine Compartment Fuse Box Relay Function | |
| A | Front Wiper Fast/Slow Relay |
| B | Front Wiper On/Off Relay |
| C | Front Fog Light Relay |
| D | Heating and A/C Relay |
| E | A/C Compressor Relay |
| F | Engine Cooling Fan Low Speed Relay |
| G | DME Main Relay (K6300) |
| Cabin Fuse Box Relay Function | |
| H | Headlight Power Wash Relay |
| I | Heating and A/C Blower |
| J | Fuel Pump Relay |
MINI Cooper R50 S 2002 Hatchback Fuse Panel/Board – Fuse Symbol Map
