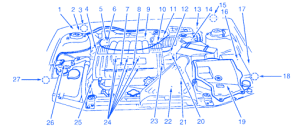

Mitsubishi Diamante 1997 Electrical Circuit Wiring Diagram
| SYMBOL | DESCRIPTION |
|---|---|
| 1 | ABS Motor Relay |
| 2 | ABS Valve Relay |
| 3 | G5 |
| 4 | Power Steering Pressure Switch |
| 5 | Heated Oxygen Sensor (Front) |
| 6 | Heated Oxygen Sensor (Rear) |
| 7 | Evaporative Emission Purge Solenoid |
| 8 | EGR Solenoid |
| 9 | Manifold Differential Pressure Sensor |
| 10 | Throttle Position Sensor |
| 11 | Idle Air Control Motor |
| 12 | Camshaft Position Sensor |
| 13 | Fuel Pump Check Terminal |
| 14 | Volume Air Flow Sensor |
| 15 | G4 |
| 16 | Engine Compartment Fuse/Relay Block |
| 17 | Starter Relay |
| 18 | G16 |
| 19 | ELC 4-Speed Control Solenoid Valve |
| 20 | Ignition Coil |
| 21 | Park/Neutral Position Switch |
| 22 | Vehicle Speed Sensor |
| 23 | Engine Coolant Temperature Sensor |
| 24 | Injector |
| 25 | Crankshaft Position Sensor |
| 26 | Auto-Cruise Control Vacuum Pump |
| 27 | G1 |
Mitsubishi Diamante 1997 Electrical Circuit Symbol Map
