Mitsubishi Diamante 2010 Front Engine Fuse Box / Block Circuit Breaker Diagram
| SYMBOL | ELECTRICAL SYSTEM | CAPACITY |
|---|---|---|
| 1 | - | - |
| 2 | Trunk lid Opener | 15A |
| 3 | Ignition Switch | 10A |
| 4 | Instrument Cluster | 10A |
| 5 | Antiglare Mirror | 10A |
| 6 | SWS | 10A |
| 7 | Demister, Heater Relay | 10A |
| 8 | Stop Lights | 15A |
| 9 | Turn-Signal Lights (SRS) | 10A |
| 10 | Reversing Lights | 10A |
| 11 | Radio | 10A |
| 12 | Cigarette Lighter | 15A |
| 13 | Wiper/Washer | 20A |
| 14 | Sunroof | 10A |
| 15 | Heater | 30A |
| 16 | demister | 30A |
| 17 | Spare Fuse | 30A |
| 18 | Spare Fuse | 10A |
| 19 | Spare Fuse | 15A |
| 20 | Spare Fuse | 20A |

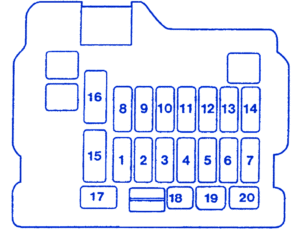

Mitsubishi Diamante 2010 Front Engine Fuse Panel / Board – Fuse Symbol Map
