Mitsubishi Galant 1994 Underhood Fuse Box/Block Circuit Breaker Diagram
| No. | Circuit | Housing Color | Rated Capacity(A) |
|---|---|---|---|
| 1 | Dedicated Fuse No.6,12 and Multi-Purpose Fuse No.5,6,11 | Yellow | 60A |
| 2 | Fusible Link No.1,7 and Generator Circuit | Blue | 100 |
| 3 | Ignition Circuit | Pink | 30A |
| 4 | ABS Circuit | Red | 50A |
| 5 | Cooling and Air Conditioning Circuit | Pink | 30A |
| 6 | Headlight, Foglight, Taillight and Generator Circuit | Green | 40A |
| 7 | Power Window and Central Door Locking Circuit | Pink | 30A |

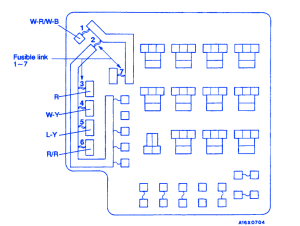

Mitsubishi Galant 1994 Underhood Fuse Panel/Board – Fuse Symbol Map
