Mitsubishi Lancer 2.0 2002 Fuse Box/Block Circuit Breaker Diagram
| No | Electrical System | Capacity |
|---|---|---|
| 1 | Ignition Coil | 10A |
| 2 | Gauge | 7.5A |
| 3 | Back-up Lights | 7.5A |
| 4 | Cruise Control | 7.5A |
| 5 | Relay | 7.5A |
| 6 | Door Mirror Heater | 7.5A |
| 7 | Windshield Wiper | 20A |
| 8 | Engine Control | 7.5A |
| 9 | Cigarette Lighter | 15A |
| 10 | - | - |
| 11 | Outside Rearview Mirrors | 7.5A |
| 12 | Engine Control | 7.5A |
| 13 | Radio | 10A |
| 14 | Rear Window Wiper | 15A |
| 15 | Power Door Locks | 15A |
| 16 | Rear Fog Light | 10A |
| 17 | - | - |
| 18 | Dome Light | 10A |
| 19 | Heater | 30A |
| 20 | Rear Window Defogger | 30A |
| 21 | - | - |
| 22 | - | - |
| 23 | - | - |
| 24 | - | - |
| 25 | Spare Fuse | 20A |
| 26 | - | - |
| 27 | Spare Fuse | 30A |

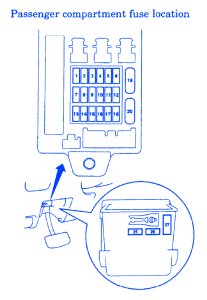

Mitsubishi Lancer 2.0 2002 Fuse Panel/Board – Fuse Symbol Map
