Mitsubishi Montero 6cyl 1990 Engine Compartment Fuse Box/Block Circuit Breaker Diagram
| Fuse No. | Power Suply Circuit | Rated Capacity A | Applicable Circuit |
|---|---|---|---|
| 1 | Battery | 20A | Clock, Dome Light, Hazard Warning Flashers, Key-Reminder Switch, Buzzer, Central Door Lock, Combination Meter |
| 2 | Headlight Relay | 10A | Taillights, License Plate Lights, Illumination Lights, Position Lights |
| 3 | Ignition Switch (IG) | 10A | Clutch Switch, Turn Signal Lights, Automatic Free-wheeling Hub Indicator Control Unit, Over Drive Switch, Overdrive Control Relay |
| 4 | 10A | Back-up Lights, Inhibitor Switch, Combination Meter, Alternator Relay | |
| 5 | 15A | Rear Window Defogger, Power Window Relay, Heater Relay, Seat Belt Warning Timer | |
| 6 | Battery | 20A | Blower Switch, Back Door Lock Switch, Heater Relay |
| 7 | 15A | Stop Lights | |
| 8 | Ignition Switch (ACC) | 15A | Whindshield Wiper and Washer, Headlight Washer Relay, Front Intermittent Wiper Relay, Horn |
| 9 | 10A | Rear Window Wiper and Washer, Rear Intermittent Wiper Relay | |
| 10 | 15A | Cigarette Lighter, Radio, Tape Player, Clock (ACC), Spare Terminal, Air Conditioner Relay |

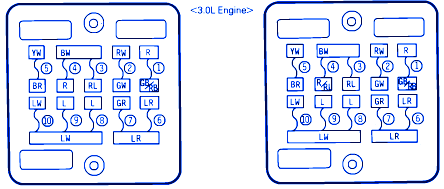

Mitsubishi Montero 6cyl 1990 Engine Compartment Fuse Panel/Board – Fuse Symbol Map
