Mitsubushi Lancer OZ Rally 2001 Engine Fuse Box/Block Circuit Breaker Diagram
| No. | Electrical System | Capacity |
|---|---|---|
| 1 | Fuse (B+) | 60A |
| 2 | Radiator Fan Motor | 50A |
| 3 | Anti-Lock Braking System | 60A |
| 4 | Ignition Switch | 40A |
| 5 | Power Window Control | 30A |
| 6 | Front Fog Lights | 15A |
| 7 | Horn | 10A |
| 8 | Engine Control | 20A |
| 9 | Air Conditioning | 10A |
| 10 | Stop Lights | 15A |
| 11 | Condenser Fan Motor | 20A |
| 12 | Alternator | 7.5A |
| 13 | Hazard Warning Flasher | 10A |
| 14 | Automatic Transaxle | 20A |
| 15 | Fuel Pump | 15A |
| 16 | Headlight High Beam (Right) | 10A |
| 17 | Headlight High Beam (Left) | 10A |
| 18 | Headlight Low Beam (Right) | 10A |
| 19 | Headlight Low Beam (Left) | 10A |
| 20 | Tail Light (Right) | 7.5A |
| 21 | Tail Light (Left) | 7.5A |
| 22 | Dome Light | 10A |
| 23 | Radio | 10A |
| 24 | - | - |

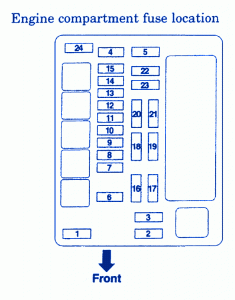

Mitsubushi Lancer OZ Rally 2001 Engine Fuse Panel/Board – Fuse Symbol Map
