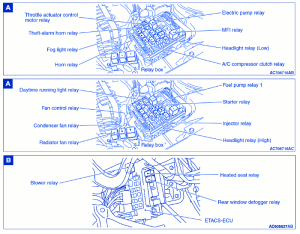

Mitsubushi Lancer X 2011 Fuse Box/Block Circuit Breaker Diagram
| Relay Map | |
|---|---|
| A | |
| - | Throttle Actuator Control Motor Relay |
| - | Theft-Alarm Horn Relay |
| - | Fog Light Relay |
| - | Horn Relay |
| - | Electric Pump Relay |
| - | MFI Relay |
| - | Headlight Relay (Low) |
| - | A/C Compressor Clutch Relay |
| A | |
| - | Daytime Running Light Relay |
| - | Fan Control Relay |
| - | Condenser Fan Relay |
| - | Radiator Fan Relay |
| - | Fuel Pump Relay 1 |
| - | Starter Relay |
| - | Injector Relay |
| - | Headlight Relay (High) |
| B | |
| - | Blower Relay |
| - | Heated Seat Relay |
| - | Rear Window Defogger Relay |
| - | ETACS-ECU |
Mitsubushi Lancer X 2011 Fuse Panel/Board – Fuse Symbol Map
