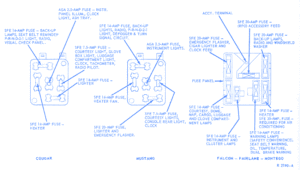

Mustang Classic 1970 Main Fuse Box/Block Circuit Breaker Diagram

Mustang Classic 1970 Main Fuse Box/Block Circuit Breaker Diagram



FUSE MAPAMPS
Back-Up Lamps, Seat Belt Reminder P-R-N-D-2-1 Light, Radio, Visual Check Panel14A
Heater14A
Instr. Panel Illum, Clock Light, Ash Tray2.5A
Courtesy Light, Glove Box Light, Luggage Compartment Light, Clock, Tachometer, Radio Pilot7.5A
Lighter14A
Back-Up Lights, Radio, P-R-N-D-2-1 Light, Defogger & Turn Signal Circuit14A
Heater Fan14A
Instrument Lighter2.5A
Courtesy Lights, Console Rear Light, Clock7.5A
Lighter and Emergency Flasher20A
Emergency Flasher, Cigar Lighter and Clock Feed20A
Courtesy, Dome, Map, Cargo, Luggage and Glove Compartment Lamps14A
(RPD) Accessory Feed20A
Instrument and Cluster Lamps14A
Warning Lamps (Safety Convenience), Seat Belt Warning, Oil, Temperature, Dual Brake Warning14A
Back-Up Lamps, Radio and Windshield Washer20A
Heater14A
Required for Air Conditioning30A

Mustang Classic 1970 Main Fuse Panel/Board – Fuse Symbol Map
