Mustang Cobra 1997 Fuse Box/Block Circuit Breaker Diagram
| FUSE | AMPS | CIRCUITS PROTECTED |
|---|---|---|
| IGN SW | 40A | Ignition Switch, Starter Relay |
| IGN SW | 40A | Ignittion Switch |
| IGN SW | 40A | Ignition Switch |
| HD LPS | 50A | Exterior Lamps, I/P Fuse Panel |
| EEC | 20A | Powertrwin Control Module, Constant Control Relay Module |
| HTD BL | 40A | Rear Window Defrost |
| FUEL PUMP | 20A | Fuel Pump |
| FAN | 60A | Electric Cooling Fan Motor |
| ABS | 60A | Anti-Lock Brake System |
| CONV TOP | 30A c.b. | Convertible Top |
| CIG ILLUM | 20A | Power Seat, Cigar Lighter, Auxiliary Power Socket |
| ALT | 20A | Generator/Voltage Regulator |
| AUDIO | 25A | Ignition Switch |
| INT LPS | 25A | I/P Fuse Panel (Fuses 5,9) |
| DRL, FOG, HORNS | 20A | Horns, Fog Lamps, Daytime Running Lamps (DRL) |
| L.SPD EDF MNTR | 10A | Electric Cooling Fan Motor |

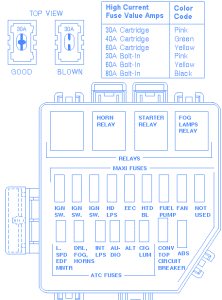

Mustang Cobra 1997 Fuse Panel/Board – Fuse Symbol Map
