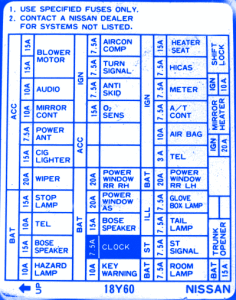

Nissan 300ZX 1993 Fuse Box/Block Circuit Breaker Diagram
| FUSE MAP | AMPS | |
|---|---|---|
| ACC | BLOWER | 15A |
| AUDIO | 10A | |
| MIRROR CONT | 10A | |
| POWER ANT | 7.5A | |
| CIG LIGHTER | 15A | |
| WIPER | 20A | |
| BAT | STOP LAMP | 15A |
| TEL | 10A | |
| BOSE SPEAKER | 15A | |
| HAZARD LAMP | 10A | |
| IGN | AIRCON COMP | 7.5A |
| TURN SIGNAL | 7.5A | |
| ANTI SKID | 7.5A | |
| O SENS | 15A | |
| ACC | - | |
| - | ||
| BAT | POWER WINDOW RR RH | 20A |
| POWER WINDOW AS | 20A | |
| BOSE SPEAKER | 15A | |
| CLOCK | 7.5A | |
| KEY WARNING | 10A | |
| IGN | HEATER SEAT | 15A |
| HICAS | 7.5A | |
| METER | 7.5A | |
| A/T CONT | 7.5A | |
| AIR BAG | 10A | |
| TEL | 3A | |
| BAT | POWER WINDOW RR HH | 20A |
| ILL | GLOVE BOX LAMP | 7.5A |
| TAIL LAMP | 7.5A | |
| ST | ST SIGNAL | 7.5A |
| BAT | ROOM LAMP | 7.5A |
| IGN | SHIFT LOCK | 10A |
| MIRROR HEATER | 20A | |
| BAT | TRUNK OPENER | 15A |
Nissan 300ZX 1993 Fuse Panel/Board – Fuse Symbol Map
