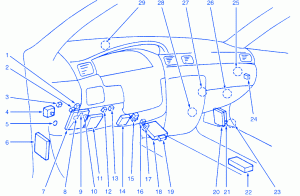

Nissan Avenir Blastar 1998 Fuse Box/Block Circuit Breaker Diagram

Nissan Avenir Blastar 1998 Fuse Box/Block Circuit Breaker Diagram



SymbolDescription
1Sun Roof Relay
2Power Window Relay
3ASCD Hold Relay
4Super Multiple Junction (SMJ)
5Circuit Breaker
6Transmission Control Module (A/T)(2.0L)
7Fuse Block
8Ignition Relay
9Blower Relay
10Accessory Relay
11ASCD Control Unit
12ASCD Brake Switch
13Stoplight Switch
16Warning Chime Unit (1.6L)
17Rear Window Defogger Timer (1.6L)
18ECCS Control Module (ECM)
19ECCS Relay
20ABS Control Unit
21Daytime Light Control Unit (Canada)
22Air Bag Diagnosis Sensor Unit
23M71
24Intermittent Wiper Amplifier
25M60
26M57, M58, M59
27M44
28M45

Nissan Avenir Blastar 1998 Fuse Panel/Board – Fuse Symbol Map
