Nissan Pathfinder 1998 Fuse Box/Block Circuit Breaker
| Fuse Symbol | Amps | Fuse Map |
|---|---|---|
| 1 | 15A | Heater, A/C |
| 2 | 15A | Heater, A/C |
| 3 | - | Blank |
| 4 | 15A | Audio |
| 5 | - | Blank |
| 6 | 7.5A | A/C, FICD |
| 7 | 10A | A/T, SRS, ABS, CHARGER, DTRL, METER, WARN, BACK/L, VSP, MIL/DL, ASCD |
| 8 | 10A | A/T, START, WARN, BACKUP, ASCD, PNP/SW |
| 9 | - | Blank |
| 10 | 10A | AUDIO, P/ANT, HORN,MULTI |
| 11 | 10A | TURN |
| 12 | 7.5A | SHIFT, A/C, START, DTRL, ASCD, WINDOW, DEF, HEATER, BUZZER, THEFT, SROOF |
| 13 | 15A | HORN |
| 14 | 15A | TURN, MULTI |
| 15 | 7.5A | INT/L, ILL, MULTI, TRNSMT |
| 16 | - | Blank |
| 17 | 15A | F/PUMP |
| 18 | 10A | HSEAT |
| 19 | 20A | WIPER |
| 20 | 15A | STOP/L, ASCD, ABS |
| 21 | 10A | A/T, EGRC1, ACC/V, EGRC/V, MIL/DL |
| 22 | 10A | SRS |
| 23 | - | Blank |
| 24 | 7.5A | AUDIO, P/ANT, MULTI, BUZZER, THEFT, A/T, PNP/SW, MIL/DL |
| 25 | 10A | FR02LH, RR02LH, FR02RH, RR02RH, FUELRH, F02H-L, R02H-L, F02H-R, FUELLH |
| 26 | 7.5A | DTR, S/SIG |
| 27 | 7.5A | ABS |
| 28 | 10A | DTRL |

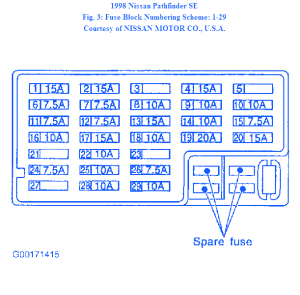

Nissan Pathfinder 1998 Fuse Panel/Board – Fuse Symbol Map
