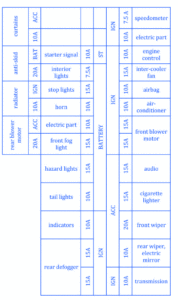

Nissan Platina 2000 Fuse Box/Block Circuit Breaker Diagram

Nissan Platina 2000 Fuse Box/Block Circuit Breaker Diagram



FUSE MAPAMPS
Rear Blower Motor20A
Radiator10A
Anti-Skid20A
Curtains10A
Starter Signal10A
Interior Lights7.5A
Stop Lights15A
Horn10A
Electric Part10A
Front Fog Light15A
Hazard Lights15A
Tail Lights10A
Indicators10A
Rear Defogger15A
Transmission10A
Rear Wiper, Electric Mirror10A
Front Wiper20A
Cigarette Lighter15A
Audio15A
Front Blower Motor15A
Air-Conditioniner10A
Inter-Cooler Fan15A
Engine Control10A
Electric Part10A
Speedometer7.5A

Nissan Platina 2000 Fuse Panel/Board – Fuse Symbol Map
