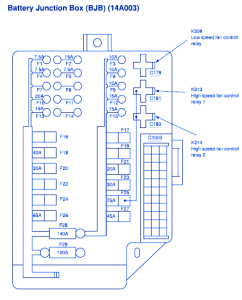

Nissan Quest 2003 Battery Fuse Box/Block Circuit Breaker Diagram
| Fuse | Amps | Circuits Protected |
|---|---|---|
| F1 | 7.5A | Fog Lamp Relay |
| F2 | 15A | Fuel Pump Relay |
| F3 | 10A | Powertrain Control Module (PCM)(12A650), Fuel Injectors |
| F4 | 7.5A | Smart Entry Cntrol (SEC)/Timer Module, Anti-Theft Relay |
| F5 | 7.5A | Powertrain Control Module (PCM)(12A650) |
| F6 | 10A | PCM Power Relay, Data Link Connector (DLC)(14489) |
| F7 | - | Not Used |
| F8 | - | Not Used |
| F9 | 10A | Generator |
| F10 | 20A | ABS Control Module (2C219) |
| F11 | - | Not Used |
| F12 | 15A | Lighhting Control Module |
| F13 | 15A | Horn Relay |
| F14 | - | Not Used |
| F15 | 15A | Lighting Control Module |
| F16 | - | Not Used |
| F17 | - | Not Used |
| F18 | 40A | ABS Control Module (2C219) |
| F19 | - | Not Used |
| F20 | 30A | Circuit Breaker 1, Circuit Breaker 2, Power Windows, Power Seats |
| F21 | 20A | Low Speed Fan Control Relay |
| F22 | - | Not Used |
| F23 | 30A | Ignition Switch (11572) |
| F24 | - | Not Used |
| F25 | 75A | High Speed Fan Control Relay1, High Speed Fan control Relay 2 |
| F26 | 65A | Front Blower Motor Relay |
| F27 | 45A | Central Junction Box (CJB)(14A068), Rear Window Defrost Relay |
| F28 | 140A | Central Junction Box (CJB)(14A068),Generator |
| F29 | 100A | Central Junction Box (CJB)(14A068),Accessory Relay, Ignition Relay, Tail Lamp Relay |
Nissan Quest 2003 Battery Fuse Panel/Board – Fuse Symbol Map
