Oldsmobile 2003 Intrigue In Dash Fuse Box/Block Circuit Breaker Diagram

Oldsmobile 2003 Intrigue In Dash Fuse Box/Block Circuit Breaker Diagram

FUSE MAPAMPERE
ABS20A
LOW BLOWER20A
ABS10A
TURN SIGNALS CORN LPS10A
RADIO, HVAC, RFA CLUSTER,DATA LINK15A
HIGH BLOWER30A
CRANK SIGNAL BCM, CLUSTER10A
HVAC10A
BTSI10A
AIR BAG15A
ABS,BCM10A
HAZARD15A
RED STRG WHL ILLUM2A
WIPER25A
CRUISE10A
CLUSTER10A
CIGAR LTR AUX POWER20A
STOP LAMPS15A
FRT PARK LPS, FOG LAMPS10A
POWER DROP10A
IGN 0:CLUSTER PCM & BCM10A
DRL10A
INADV POWER BUS15A
DOOR LOCKS20A
TAIL LAMPS, LIC LAMPS15A
RADIO, CRUISE2A
PCM, BCM, U/H RELAY10A
CD CHANGER10A
POWER MIRRORS2A
PANEL DIMMING7.5A
PWR WINDOWS, PWR SUNROOF30A
REAR DEFOG30A
POWER SEATS30A

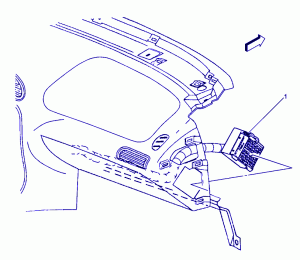

Oldsmobile 2003 Intrigue In Dash Fuse Panel/Board – Fuse Symbol Map
