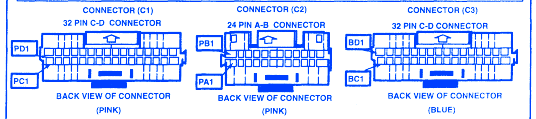

CIRCUITPINWIRE COLOR
-PC1-
-PC2-
IAC"A"HIGHPC3LT BLU/WHT
IAC"A"LOWPC4LT BLU/BLK
IAC"B"LOWPC5 LT GRN/BLK
IAC"B"HIGHPC6LT GRN/WHT
-PC7-
-PC8-
IAT SIGNALPC9TAN
ECT SIGNALPC10YEL
-PC11-
INJ DRIVER 2 & 3PC12DK GRN
PCM GROUNDPC13BLK/WHT
-PC14-
IGNITION CONTROL (IC)2 SIGNALPC15ORN
INJ DRIVER 1 & 4PC16DK BLU
IGN REF LOPD1RED/BLK
IGN 7X REFPD2PPL/WHT
A/C REFRIGERANT PRESSURE SIGNALPD3RED/BLK
MAP SIGNALPD4LT GRN
-PD5-
-PD6-
-PD7-
CRUISE ENGAGEDPD8LT BLU/BLK
-PD9-
-PD10-
BRAKE SWITCHPD11PPL (7)
A/C REQUESTPD12LT GRN
-PD13-
-PD14-
-PD15-
-PD16-
