Oldsmobile Aurora 2003 Underdash Fuse Box/Block Circuit Breaker Diagram
| Fuse | Rating | Description |
|---|---|---|
| CRUISE | 10A | Cruise Control module (CCM), Body Control Module (BCM) Clutch Pedal Position (CPP) Switch TCC/Brake Switch |
| CRUISE SW | 2A | Cruise Control On/Off Switch |
| CRUISE SW LPS | 2A | Cruise Control Switch Assemby Lamps (Dimming) |
| FOG LS | 10A | Fog Lamps Relay, Fog Lamp Switch |
| HVAC BLOWER | 20A | HVAC COntrol Assembly |
| INST LPS | 10A | Interior Lamps (Dimming) |
| INT LPS | 10A | Body Control Module (BCM) |
| CIRCUIT BREAKER PWRWNDW | 25A | Power Window Switches |
| RADIO BATT | 15A | Radio |
| SUNROOF | 20A | Sunroof Module |

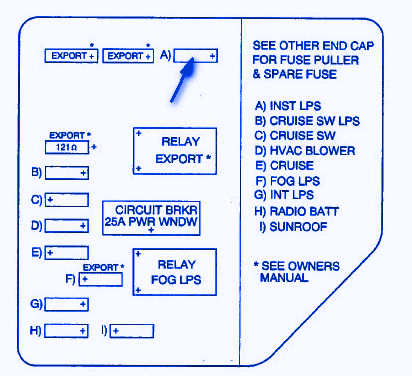

Oldsmobile Aurora 2003 Underdash Fuse Panel/Board – Fuse Symbol Map
