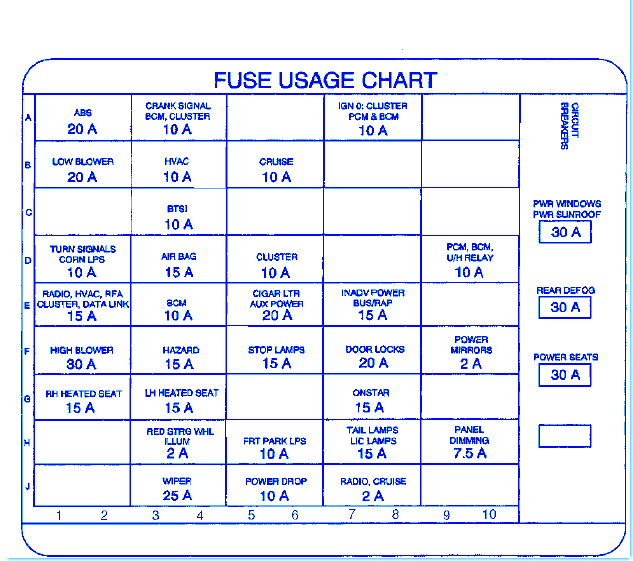

Oldsmobile Intrigue V6 2001 Fuse Box/Block Circuit Breaker Diagram
| FUSE MAP | AMPS | |
|---|---|---|
| - | ABS | 20A |
| - | LOW BLOWER | 20A |
| - | TURN SIGNALS CORN LPS | 10A |
| - | RADIO, HVAC, RFA CLUSTER, DATA LINK | 15A |
| - | HIGH BLOWER | 30A |
| - | RH HEATED SEAT | 15A |
| - | CRANK SIGNAL BCM, CLUSTER | 10A |
| - | HVAC | 10A |
| - | BTSI | 10A |
| - | AIR BAG | 15A |
| - | BCM | 10A |
| - | HAZARD | 15A |
| - | LH HEATED SEAT | 15A |
| - | RED STRG WHL ILLUM | 2A |
| - | WIPER | 25A |
| - | CRUISE | 10A |
| - | CLUSTER | 10A |
| - | CIGAR LTR AUX POWER | 20A |
| - | STOP LAMPS | 15A |
| - | FRT PARK LPS | 10A |
| - | POWER DROP | 10A |
| - | IGN CLUSTER PCM & BCM | 10A |
| - | INACV POWER BUS/RAP | 15A |
| - | DOOR LOCKS | 20A |
| - | ON/START | 15A |
| - | TAIL LAMPS LIC LAMPS | 15A |
| - | RADIO, CRUISE | 2A |
| - | PCM, BCM, U/H RELAY | 10A |
| - | POWER MIRRORS | 2A |
| - | PANEL DIMMING | 7.5A |
| - | PWR WINDOWS PWR SUNROOF | 30A |
| - | REAR DEFOG | 30A |
| - | POWER SEATS | 30A |
Oldsmobile Intrigue V6 2001 Fuse Panel/Board – Fuse Symbol Map
