Peugeot 306 1996 Fuse Box/Block Circuit Breaker Diagram
| No. | Rating | Function(s) |
|---|---|---|
| 1 | - | Spare |
| 2 | 7.5A | Automatic Gearbox ECU or Overspeed Buzzer |
| 3 | - | Spare |
| 4 | 5A | Instrument Panel- Passenger Compartment- Coolant Temperature Unit- Auto Box Lever Lighting- Auto Box Relay- Passenger Airbag- Disarming Control |
| 5 | 25A | Reverse Light Switch- Auto Box Relay- Brake Light Switch- Day Running Lights Relay- Cooling Fan Relay- Pressure Switch Control- Compressor Relay- ABS Control Unit |
| 6 | 5A | Instrument Panel- Passenger Compartment Protection Unit- Alarm Light- Luggague Compartment Lighting- Rear Courtesy Light |
| 7 | 30A | Heated Rear Screen and Mirrors |
| 8 | 20A | Passenger Compartment Protection Unit- Radio |
| 9 | 20A | Injection Control Unit |
| 10 | 20A | Hazard Warnings- Courtesy Light |
| 11 | 10A | Instrument Panel Lighting- Lights-On Buzzer- Clock- Lighting Rheostat (Dash Dimmer) |
| 12 | 10A | Rear fog Light |
| 13 | - | Spare |
| 14 | 30A | Rear Windows and Heated Seats |
| 15 | 20A | Tow Bar Socket |
| 16 | 30A | Front Windows and Sun Roof Relay |
| 17 | 20A | Horn |
| 18 | 10A | Front Fog Lights |
| 19 | 10A | Rear Tail Light |
| 20 | 30A | Blower |
| 21 | 10A | Left Tail Light- Number Plate Light- Front Sidelights |
| 22 | 10A | Blower Relay- Heated Rear Screen and Mirrors |
| 23 | 20A | Cigarette Lighter |
| 24 | 10A | Radio |
| 25 | - | Spare |
| 26 | 30A | Front Wiper and Wash Pump- Front Wiper motor- Wiper Timer or Rain sensor Relay |
| 27 | 15A | Glovebox Lighting- Direction Indicators- Electric Mirror Switch- Courtesy Lights- Map Reader- Courtesy Mirror- Rain Sensor- Passenger Compartment Temperature Sensor |
| 28 | 15A | Instrument Panel- Clock- Windows and Heated Seat Relay- Rear Wiper- Courtesy Light |

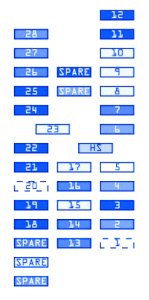

Peugeot 306 1996 Fuse Panel/Board – Fuse Symbol Map
