Pontiac Aztek 2002 Underhood Fuse Box/Block Circuit Breaker Diagram
| SYMBOL | DESCRIPTION | AMPS |
|---|---|---|
| MINI FUSES | ||
| 1 | FUEL PUMP | 15A |
| 2 | A/C CLU | 10A |
| 3 | HORN | 15A |
| 4 | ENG CONTROLS | 10A |
| 5 | PCM | 10A |
| 6 | ABS | 10A |
| 7 | TRANS SOL | 10A |
| 8 | FUTURE | |
| 9 | ABSVL V | 25A |
| 10 | O2 SENSORS | 16A |
| 11 | FUEL INJ | 15A |
| 12 | FUTURE | |
| 13 | ELEC ENG | 15A |
| 14 | DRL | 10A |
| 15 | LO BEAM RT | 10A |
| 16 | FUTURE | |
| 17 | LO BEAM LT | 10A |
| 18 | HI BEAM LT | 10A |
| 19 | IGN 3 | 20A |
| 20 | PRK LPS | 15A |
| 21 | AIR PUMP | 30A |
| 22 | FUTURE | |
| 23 | HI BEAM RT | 10A |
| 24 | FUTURE | |
| 25 | FUTURE | |
| 26 | FOG LPS | 10A |
| 27 | IGN MAIN | 10A |
| 28 | BCME | 10A |
| 29 | FUTURE | |
| 30 | AWD | 15A |
| 31 | CRUISE | 10A |
| 32 | FRT AUX | 20A |
| 33 | BTS1 | 2A |
| 34 | FUTURE | |
| J-STYLE FUSES | ||
| 35 | IGN2 | 40A |
| 36 | ABSMTR | 40A |
| 37 | FUTURE | |
| 38 | FUTURE | |
| 39 | COOL FAN2 | 30A |
| 40 | COOL FAN1 | 30A |
| 41 | IGN 1 | 50A |
| 42 | BATT 3 | 60A |
| 43 | FUTURE | |
| 44 | FUTURE | |
| 45 | BATT 2 | 60A |
| 46 | FUTURE | |
| 47 | K3N 3 | 40A |
| 48 | BATT 1 | 60A |
| MAXI BREAKER | ||
| 49 | FUTURE | |
| MICRO RELAYS | ||
| 50 | HORN | |
| 51 | FUEL PUMP | |
| 52 | A/C CLU | |
| 53 | DRL | |
| 54 | HDLP LO-BEAM | |
| 55 | PARK LPS | |
| 56 | HDLP HI-BEAM | |
| 57 | FOG LPS | |
| MINI RELAYS | ||
| 58 | CRANK | |
| 59 | COOL FAN2 | |
| 60 | IGNITION | |
| 61 | COOL FAN3 | |
| 62 | COOL FAN1 | |
| 63 | AIR PUMP | |
| SPARE FUSES | ||
| 64 | - | 2A |
| 65 | - | 15A |
| 66 | - | 10A |
| 67 | - | 20A |
| 68 | - | 30A |
| 69 | - | 25A |
| FUSE PULLER | ||
| 70 | FUSE PULLER | |
| DIODE | ||
| A/C CLU | ||

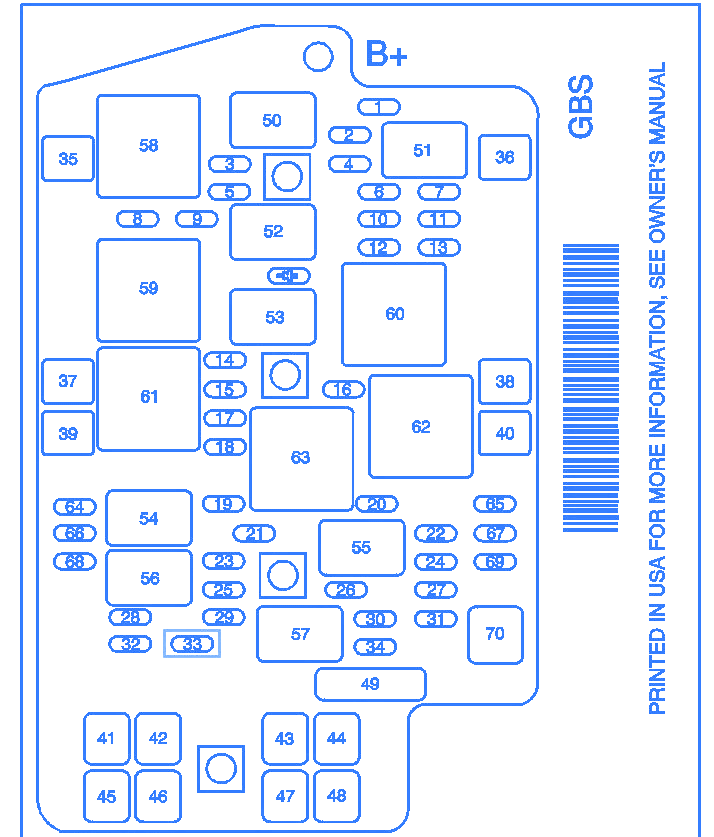

Pontiac Aztek 2002 Underhood Fuse Panel/Board – Fuse Symbol Map
