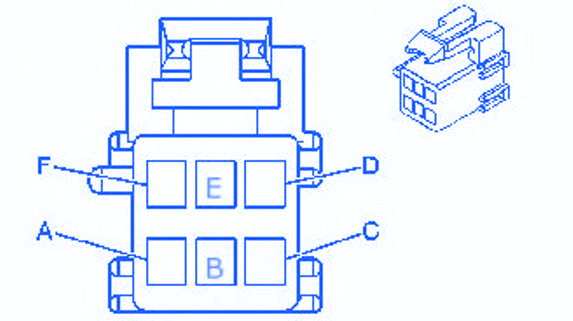

Pontiac Aztek 2008 Pin Out Electrical Circuit Wiring Diagram
| PIN | WIRE COLOR | CIRCUIT NO. | FUNCTION |
|---|---|---|---|
| A | TAN/WHT | 816 | A/T Shift Lock Solenoid Control |
| B | ORN/BLK | 1786 | Ignition 1 Voltage |
| C | LT BLU | 1134 | Ignition Lock Cylinder Control Actuator Signal |
| D | - | - | Not Used |
| E | DK GRN/WHT | 1135 | A/T Shift Lock Control Solenoid Supply Voltage |
| F | PPL | 1600 | Ignition 0 Voltage |
