Pontiac G6 2005 Main Engine Fuse Box/Block Circuit Breaker Diagram

Pontiac G6 2005 Main Engine Fuse Box/Block Circuit Breaker Diagram



FUSEFUNCTION
1Air Conditioner Clutch
2Electronic Throttle Control
3Engine Control Module (IGN 1)(LZ4,LZ9)
4Transaxle Control Module Ignition 1
5Mass Airflow Sensor (LY7)
6Emission
7Left Headlamp Low Beam
8Horn
9Right Headlamp Low Beam
10Front Fog Lamps
11Left Headlamp High Beam
12Right Headlamp High Beam
13Engine Control Module (BATT)(LE5,,LY7)
14Windshield Wiper
15Anti-Lock Brake System (IGN 1)
16Engine Control Module (IGN 1)(LE5, LY7)
17Cooling Fan 1
18Cooling Fan 2
19Run Relay, Heating , Ventilation, Air Conditioning Blower
20Body Control Module 1
21Body Control Module Run/Crank
22Rear Electrical Center 1
23Rear Electrical Center 2
24Anti-Lock Brake System
25Body Control Module 2
26Starter
41Electric Power Steering
42Transaxle Control Module Battery
43Ignition Module (LE5, LZ4, LZ9) Odd Cylinder Injectors/Ignition Coils (LY7)
44Injectors (LE5, LZ4, LZ9), Even Cylinder Injectors/Ignition Coils (LY7)
45Rear Oxygen Sensors
46Daytime Running Lamps
47Center High-Mounted Stoplamp
50Front Power Windows Coupe/Retractable Hardtop
51Engine Control Module (BATT)(LZ4, LZ9)

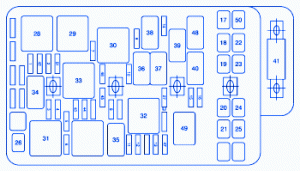

Pontiac G6 2005 Main Engine Fuse Panel/Board – Fuse Symbol Map
