Pontiac Grand Prix 2005 Under Seat Electrical Circuit Wiring Diagram

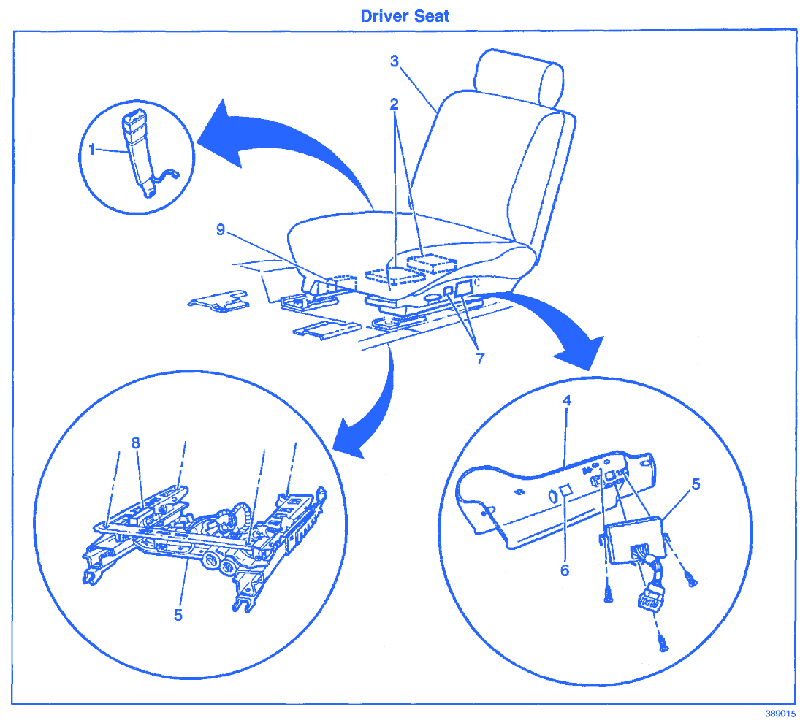

| Symbol | Description |
|---|---|
| 1 | Seat Belt Switch |
| 2 | Seat Lumbar Vertical Adjuster Relay, Lumbar Horizontal Adjuster Relay |
| 3 | Heated seat Back Element-Driver |
| 4 | Front Seat Finish Panel |
| 5 | Seat Adjuster Switch-Driver |
| 6 | Seat Lumbar Switch-Driver |
| 7 | Seat Lumbar Switch-Driver, and Seat Adjuster Switch-Driver |
| 8 | Heated Seat Control Module-Driver |
| 9 | Heated Seat Control Module-Driver |
Pontiac Grand Prix 2005 Under Seat Electrical Circuit Symbol Map
