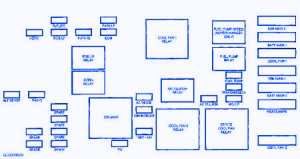

Pontiac Grand Prix 6 cyl 1997 Fuse Box/Block Circuit Breaker Diagram
| Fuse | Description |
|---|---|
| FUTURE | Spare |
| PARK LP | Chime/Mall Module, Taillamps, Park Lamps, Side marker Lamps, Dimmable Lamps |
| FOG LP | Fog Lamps |
| FUTURE | Spare |
| ECM | ECM/PCM |
| FUEL PMP | Fuel Pump |
| TCC | Automatic Transaxle: Enable, Switch, Shift, PWM |
| ALT | All Sense |
| RADIO | Radio, Remote Lock Control, Theft Shock Sensor, Trip Computer, HVAC Module, ABS Module, Security LED |
| AC CLU | AC Clutch |
| B/U LP | Trunk Release, Back-Up Lamps |
| DFI | Ignition Module |
| IGNI-UH | MAF, Heated Sensors, Canister, Boost Solenoid |
| INJ | Fuel Injectors |
Pontiac Grand Prix 6 cyl 1997 Fuse Panel/Board – Fuse Symbol Map
