Pontiac Hardtop 2002 Main Fuse Box/Block Circuit Breaker Diagram

Pontiac Hardtop 2002 Main Fuse Box/Block Circuit Breaker Diagram



SYMBOLDESCRIPTIONAMPS
MINI FUSES
1FUEL PUMP15A
2A/C CLU10A
3HORN15A
4ENG CONTROLS10A
5PCM10A
6ABS10A
7TRANS SOL10A
8FUTURE
9ABSVL V25A
10O2 SENSORS16A
11FUEL INJ15A
12FUTURE
13ELEC ENG15A
14DRL10A
15LO BEAM RT10A
16FUTURE
17LO BEAM LT10A
18HI BEAM LT10A
19IGN 320A
20PRK LPS15A
21AIR PUMP30A
22FUTURE
23HI BEAM RT10A
24FUTURE
25FUTURE
26FOG LPS10A
27IGN MAIN10A
28BCME10A
29FUTURE
30AWD15A
31CRUISE10A
32FRT AUX20A
33BTS12A
34FUTURE
J-STYLE FUSES
35IGN240A
36 ABSMTR40A
37FUTURE
38FUTURE
39COOL FAN230A
40COOL FAN130A
41IGN 150A
42BATT 360A
43FUTURE
44FUTURE
45BATT 260A
46FUTURE
47K3N 340A
48BATT 160A
MAXI BREAKER
49FUTURE
MICRO RELAYS
50HORN
51FUEL PUMP
52A/C CLU
53DRL
54HDLP LO-BEAM
55PARK LPS
56HDLP HI-BEAM
57FOG LPS
MINI RELAYS
58CRANK
59COOL FAN2
60IGNITION
61COOL FAN3
62COOL FAN1
63AIR PUMP
SPARE FUSES
64-2A
65-15A
66-10A
67-20A
68-30A
69-25A
FUSE PULLER
70FUSE PULLER
DIODE
A/C CLU

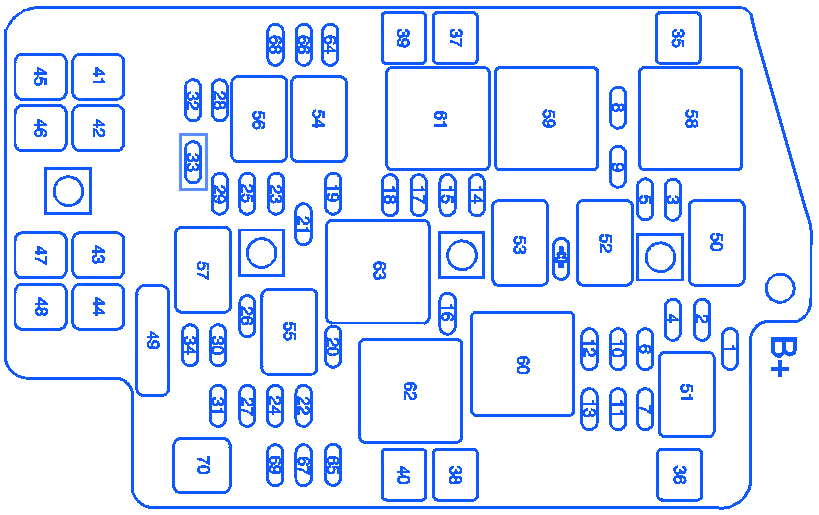

Pontiac Hardtop 2002 Main Fuse Panel/Board – Fuse Symbol Map
