Pontiac SE 2003 Front Fuse Box/Block Circuit Breaker Diagram



Pontiac SE 2003 Front Fuse Box/Block Circuit Breaker Diagram

FUSECOLORAMPSCELL
AIR BAGRED10ASupplemental Inflatable Restraint
INT LPSRED10AAudible Warnings: Chime, Interior Lamps, Antilock Brakes and Remote Keyless Entry
ALARMRED10AMulti-function Alarm Module, Traction Control, Rear Window Defogger, Keyless Entry, and Cruise Control
CRUISERED10ACruise Control
DOOR LK 1RED10AAutomatic Door Locks
DR LK 2YEL20AAutomatic Door Locks
DR UNLKRED10AAutomatic Door Unlock, and Keyless Entry
FTP/ FOGYEL20AHeadlamps: Flash to Pass and Fog Lamps
HDLP (CIRCUIT BREAKER)20AHeadlamps and Daytime Ranning Lamps
HRNBLUE15AHorn and Data Link Connector
HTR A/C WHT25AHVAC: Blower Motor, Daytime Running Lamps, Automatic Light Control, and Rear Defogger
INSTRED10AInstrument Panel Cluster
INST LPSRED10AInstrument Panel Lamps, Backlight Controls and Displays, and Fog Lamps
LTRBLU15ACigar Lighter and Auxilary Power Outlet
O2RED10AHeated Oxygen Sensors
PCMRED10APowertrain Control Module and Mass Air Flow Sensor
PRNDLRED10AInstrument Panel Cluster, Powertrain Control Module, Park Lock Solenoid, PRNDL Control Module, and Brake Transaxle Shift Interlock
PWR STGRN30APower Seat
PWR WDO (CIRCUIT BREAKER)30APower Windows and Power Sunroof
RDO IGNRED10ARadio
RR DEFGRN30ARear Window Defogger
STOP HAZYEL20AStop Lamps, Hazard Lamps, and Antolock Brakes
TAIL LPSYEL20AExterior Lamps, Instrument Panel Lamps, Underhood Lamp, and Headlamp Warning Alarm
TURNRED10ATurn Signal Lamps
WIPERWHITE25AWindshield Wipers and Windshield Washer

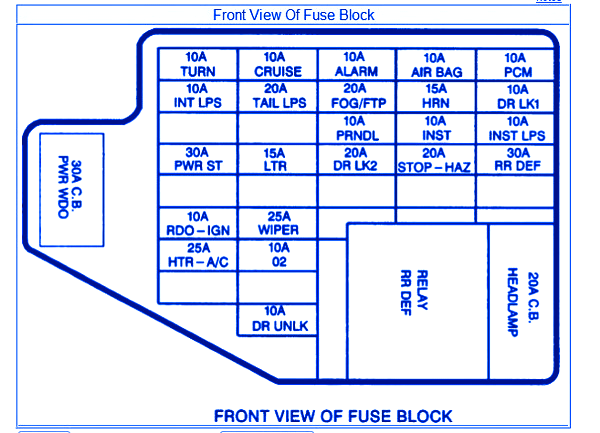

Pontiac SE 2003 Front Fuse Panel/ Board – Fuse Symbol Map
