Pontiac Solstice 2002Main Engine Fuse Box/Block Circuit Breaker Diagram

Pontiac Solstice 2002Main Engine Fuse Box/Block Circuit Breaker Diagram



Fuse SymbolFuse MapAmp
1Fuse PLR
2Spare
3Spare
4Spare
5Spare
6AMP20A
7CLSTR10A
8IGN SW/PK32A
9STOP LP10A
10HVAC/PK310A
11Empty
12Spare20A
13AIRBAG10A
14Spare10A
15WPR10A
16HVAC/IP IGN10A
17Empty
18Empty
19EPSSTR WHL CNTRL2A
20S ROOF15A
21Spare20A
22Empty
23RDO15A
24SDM10A
25ECM/TCM10A
26DR LCK15A
27INT LIGHT10A
28Empty
29PWR WNDW30A
30HVAC
31Empty
32RAP

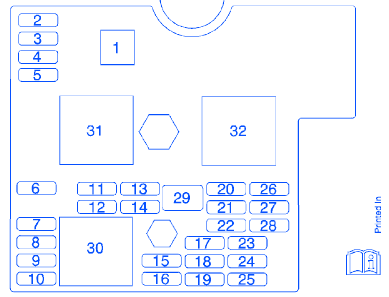

Pontiac Solstice 2002Main Engine Fuse Panel/Board – Fuse Symbol Map
