Pontiac Sportsman 2002 Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Description |
|---|---|
| Circuit Breaker | |
| HEADLMP | Headlamps |
| PWR SEAT | Power seat, Power lumbar |
| PWR WDO | Power Windows |
| Fuse | |
| MALL PGM | Mall Module-Program |
| MALL | Mall Module |
| ECM | ECM Ignition |
| CRUISE | Cruise Control |
| I/P-IGN | Chime/Mall Module, Claster, Trip Computer, Head-Up Display, Brake Transacle Shift Interlock |
| SIR | Suppleniental Inflainble Retraint (Air Bag) |
| TURN | Turn Signal |
| ABS | Anti Lock Brakes |
| BTSI | PKNDI, Brake Transaxle Shift Interlock |
| HVAC CTRL | Blower control, HVAC |
| DSC/HVAC | Rear Defog, HVAC, Driver Information Center, Daytime Running Lamps, Heated Seats |
| ABS IGN | Anti Lock Brakes Ignition |
| DRL | Daytime Running Lamps |
| WIPER | Wipers |
| SUNROOF | Sunroof |
| RADIO | Radio, Antenna |
| PWR LOCK | Mall Module-Power Locks |
| HSEAT/LUM | Heated Seats, Power Lumbar |
| R DEFOG | Rear Defog |
| HAZARD | Hazard Flashers |
| PWR MIR | Power Mirrors |
| HVAC HI | HVAC Blower - Hi |
| CIG LTR | Cigarette Lighter, ALDI, Floor Crouse Auxiliary Outlet |
| RAP | Relay Accessory Power, Mall Module |
| STOPLP | Stoplamp |
| AUX/CNSL | Auxiliary Power, Overhead Console |
| STR WHL ILUM | Steering Wheel Illumination |
| STR WHL CTRL | Steering Wheel Control |
| INT Lamp | Mall Module-Interior Lamps |
| CD CHGR | CD Charger |

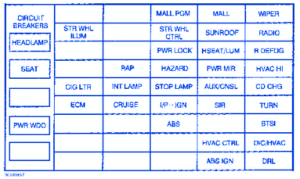

Pontiac Sportsman 2002 Fuse Panel/Board – Fuse Symbol Map
